| Model | Type | Throat Depth (Inches) | Weld Force Max (Pounds) | KVA Range (AC) |
|---|---|---|---|---|

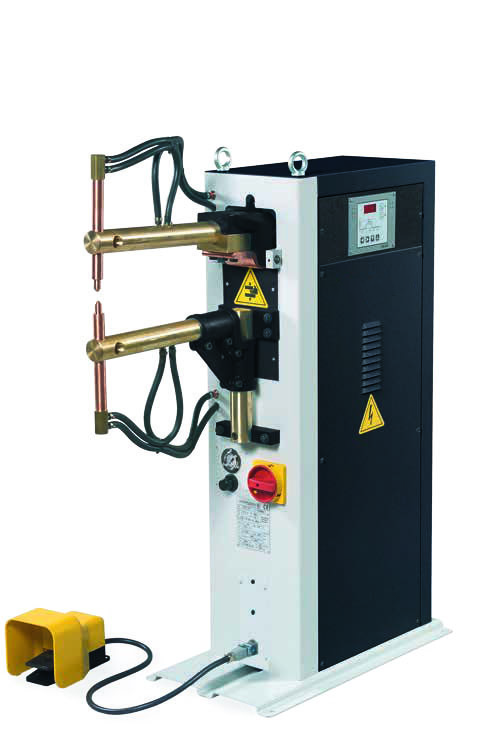

| R-20 | Rocker Arm | 18 | 372 | 20 |
| R-25 | Rocker Arm | 18 | 454 | 25 |
| R-45 | Rocker Arm | 19 | 537 | 45 |
| R-45 ET | Rocker Arm* | 28 | 375 | 45 |

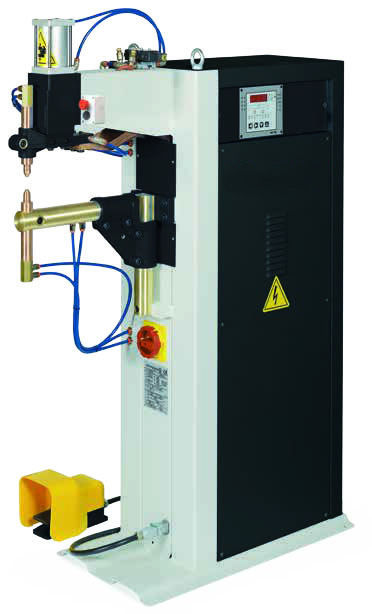

| S-35 | Press Spot welder | 16 | 618 | 35 |
| S-60 | Press Spot welder | 17 | 971 | 60 |

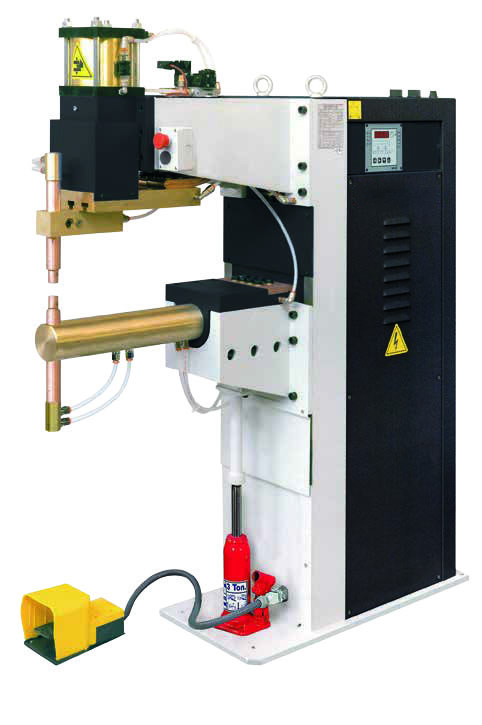

| S-125 | Press Spot welder | 20 | 1859 | 125 |

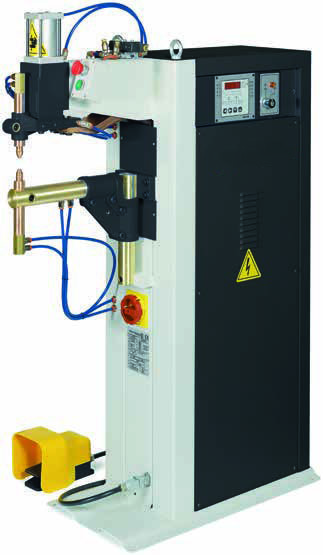

| P-50 | Press Projection welder | 17 | 971 | 50 |

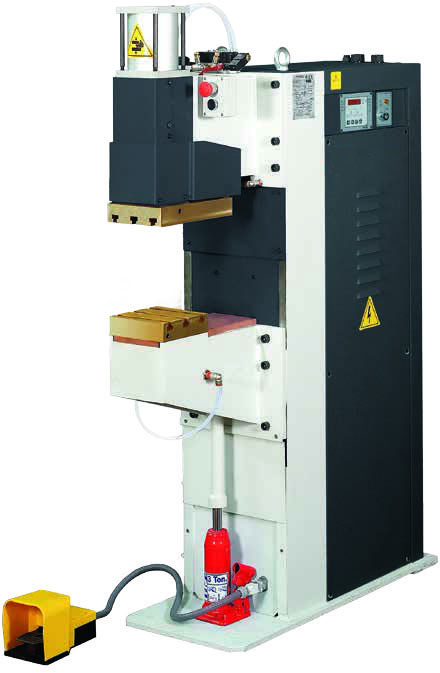

| P-80 | Press welder with Platens | 16 | 1520 | 80 |
| P-80 ET | Press welder with Platens* | 26 | 1520 | 80 |
| P-100 | Press welder with Platens | 16 | 1859 | 100 |
| P-150 | Press welder with Platens | 16 | 2480 | 150 |
| P-250 | Press welder with Platens | 18 | 3894 | 250 |
| P-250 ET | Press welder with Platens* | 26 | 2666 | 250 |

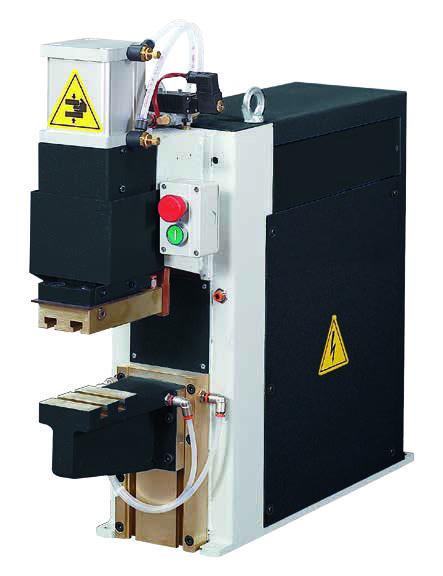

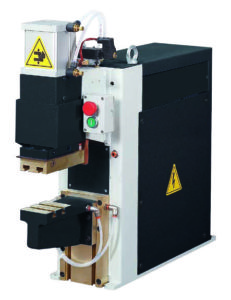

| BM-50 | Bench mount welder | 11 | 971 | 50 |
| BM-100 | Bench mount welder | 13 | 1859 | 100 |
| * denotes extended throat size |
| Model | Type | Clamping Force | Upset Force Max. Pounds | KVA Range- AC |
|---|---|---|---|---|

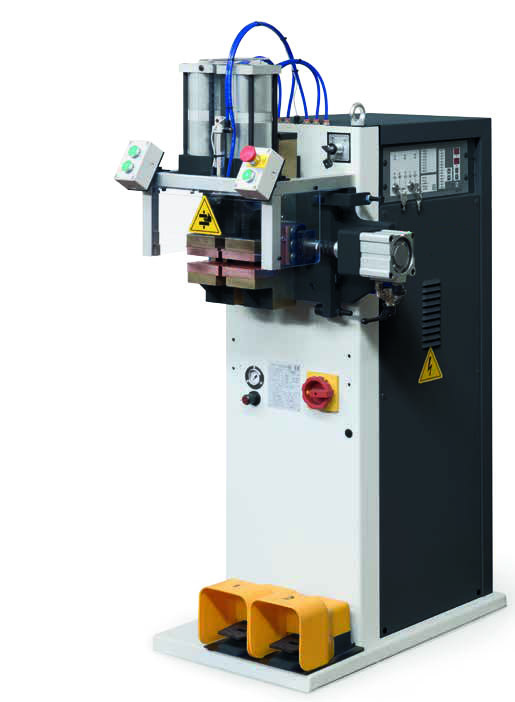

| Flash | 25 | 2791 | 930 | 25 |
| Flash | 60 | 6201 | 3721 | 60 |

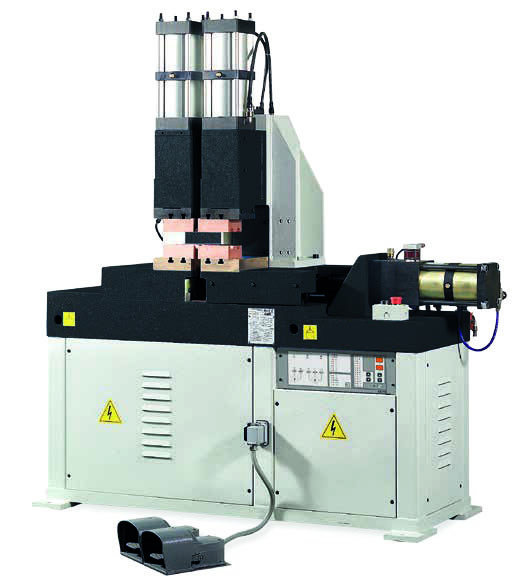

| Flash | 100 | 10646 | 4961 | 100 |
Taylor-Winfield Technologies offers a unique rebuild service by restoring resistance welders to brand new condition. We provide quality rebuilds guaranteed to meet or exceed the original performance requirements.
Click “Need Assistance” above and provide the information requested for a free consultation with our Applications Engineer(s). We will help by understanding your project and parts production requirements to ensure our machine solution will meet your needs. When you work with Taylor-Winfield, you get sound technical advice, competent service, and continued support throughout the “Life-Cycle” of your machine(s) all backed by single source responsibility from a company with over 135 years of experience in providing manufacturing parts production machinery and automated assembly solutions to customers worldwide.
The Research and Development Center can help improve part quality, quantify existing processes, create reliable parts production expectations, and establish machine performance criterion.
Taylor-Winfield’s Aftermarket Spare Parts & Copper Products Group provides “life support”, parts and ancillary equipment for existing machines worldwide.
Taylor-Winfield’s technicians have mechanical, electrical, & programming skills, enabling them to provide timely, quality service, and to supervise or perform on-site machine evaluations, repairs, & upgrades.
