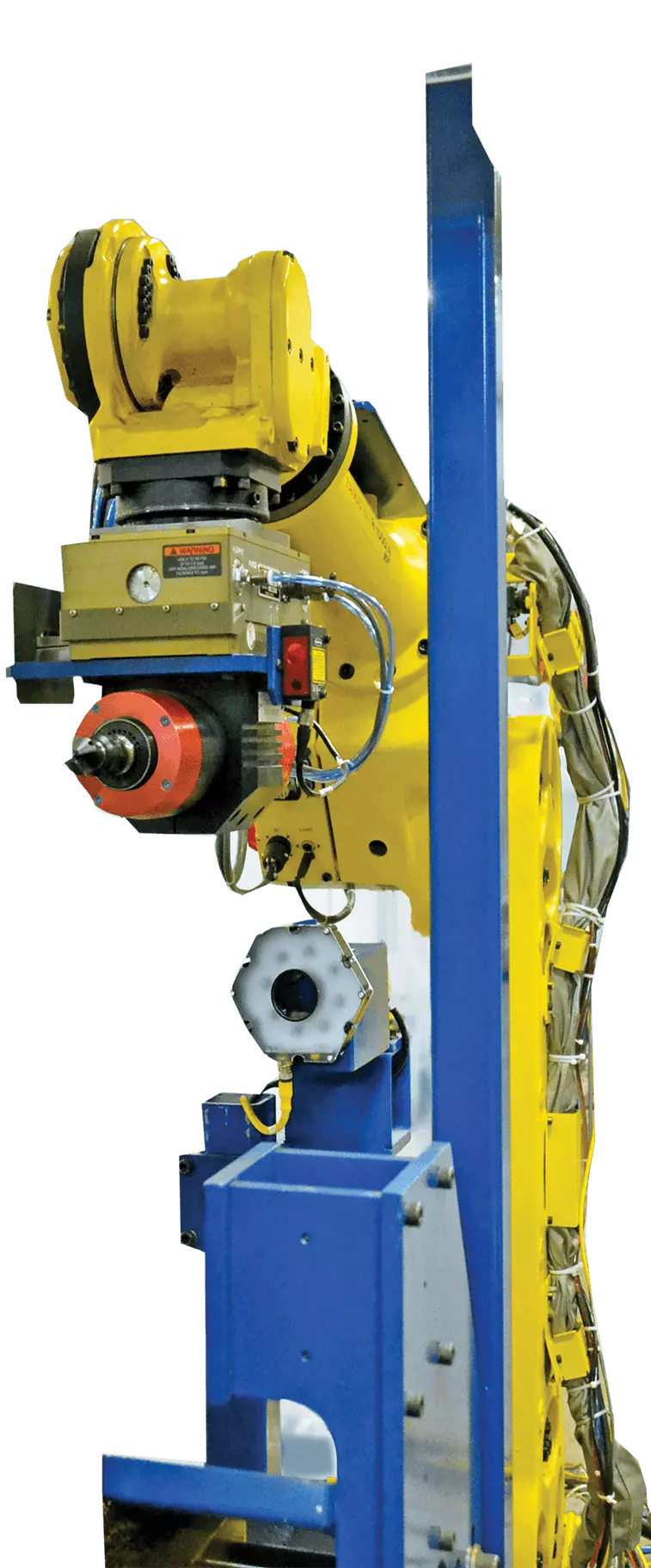

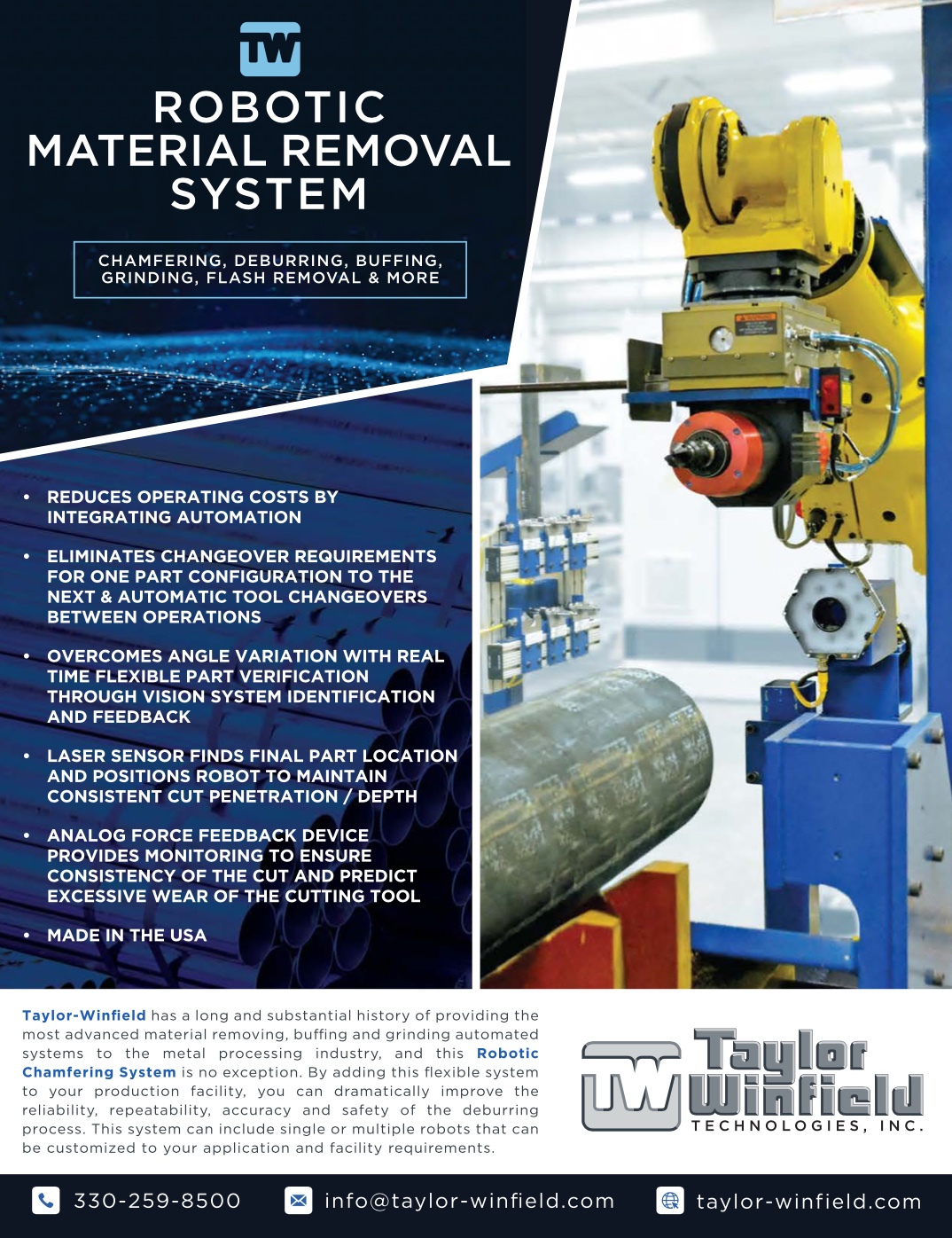

Robotic Material
Removal System

Overview:

Taylor-Winfield has a long and substantial history of providing the most advanced material removal systems to a variety of industries.

By adding this flexible system to your production facility, you can dramatically improve the reliability, repeatability, accuracy and safety of any deburring, flash removing, grinding, and/or buffing process to remove unwanted material. This system can include single or multiple robots and can be customized to your application and facility requirements.

Benefits:

  • Reduces operating costs by Integrating automation
  • Eliminates changeover requirements for one part configuration to the next & automatic tool changeovers between operations
  • Overcomes angle variation with real time flexible part verification through vision system identification and feedback
  • Laser sensor finds final part location and positions robot to maintain consistent cut penetration & depth
  • Analog force feedback device provides monitoring to ensure consistency of the cut and predict excessive wear of the cutting tool
vision system identification

Vision Identification

DSC_0017

Tool Changing Station

DSC_0021

Flexible Part Verification

Electrical
Features:

  • Robot controller package with integrated I/O and analog controlling features

  • Optional programmable logic controller (PLC) and operator interface screen (HMI) for machine

  • Vision system

  • Laser displacement sensor

  • Safety laser scanner

Mechanical
Features:

  • 6 axis robot

  • Force feedback mechanism (Push-Pull)

  • Tube blow out

  • Automatic clamping mechanism

  • Tool change station

  • High speed electric cutting spindle with automatic tooling changeover

  • Water cooling system for the cutting head

  • Chip collection pan

Available Data Points for
ERP System:

  • Outside diameter

  • Inside diameter (if pipe)

  • Product material

  • Spindle cutting tool speed in amp

  • Chamfer feed rate (cutting traverse speed)

  • Cut direction (clockwise or counter clockwise)

  • Additional 360 degrees cut if requested for deeper chamfer

  • Cutting force in the axial direction of the pipe
