Linear Friction Welders
Linear Friction Welding has been proven to produce the best solid state bond between parts of the same or different material, various geometries and is applicable for nearly any metal welding application.
Taylor-Winfield Technologies’ linear friction welders are designed utilizing the most significant patented breakthrough in linear friction welding.
TWT’s breakthrough technology is superior to traditional linear friction welding for a variety of reasons:
• Smaller Machine Footprint
• Cost Effective
• Higher Production Rates
• Repeatable Weld Results
• Positional Accuracy
• Lower Power Consumption
• Ease of use and Maintenance
• Ability to Adjust Frequency & Amplitude during the process
• Stopping Time Less than 0.1 second
• Minimal Material Loss
• Full Interface Weld
ADVANTAGES OF LINEAR FRICTION WELDING
Linear Friction Welding provides increased performance and accuracy over traditional manufacturing processes.
Here’s why:
-
- LFW is the most robust solid state bonding process
- LFW can produce welds faster than other welding processes

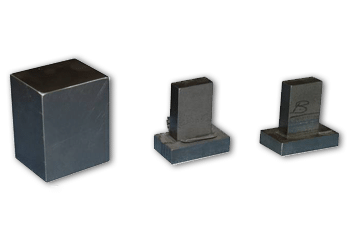

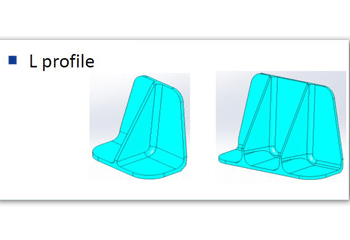

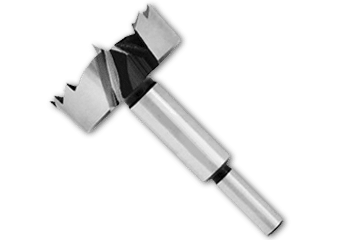

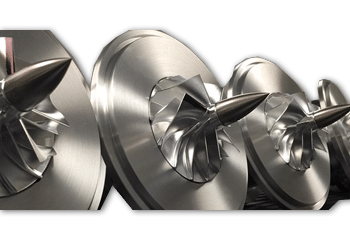

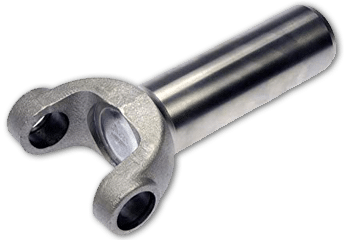

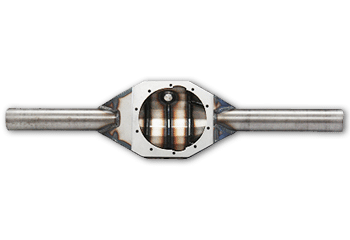

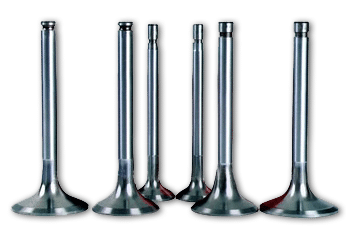

- LFW is flexible enough to join different shapes, sizes, and dissimilar materials

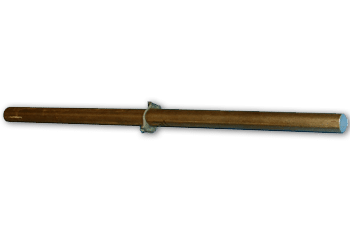

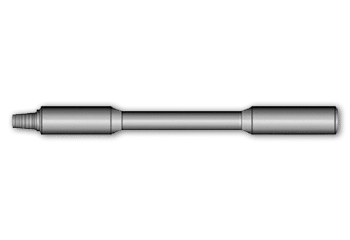

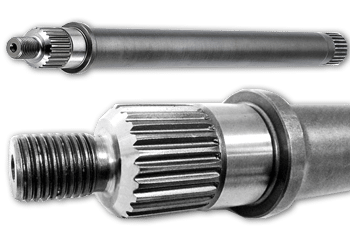

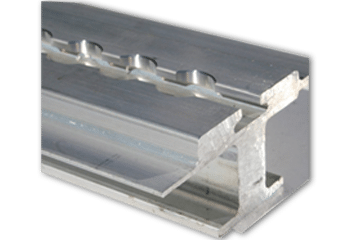

- LFW can join long parts together

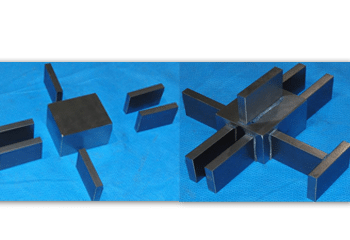

- LFW can make multiple welds simultaneously
- LFW can pre-heat metals during the process
- LFW can weld powdered metal, castings, forgings, and wrought materials
Other Advantages of Our Technology Include:
-
- Limited joint preparation required
- No solidification flaws, gas porosity, separation or slag inclusion
- Eliminates human error- the process is completely machine controlled and monitored
- Materials and Geometry are pre-calculated parameters
- Easily monitor process parameters and weld history
- No special foundations or power supplies are required
- The process can be mathematically scaled
- “Smart machine” capabilities

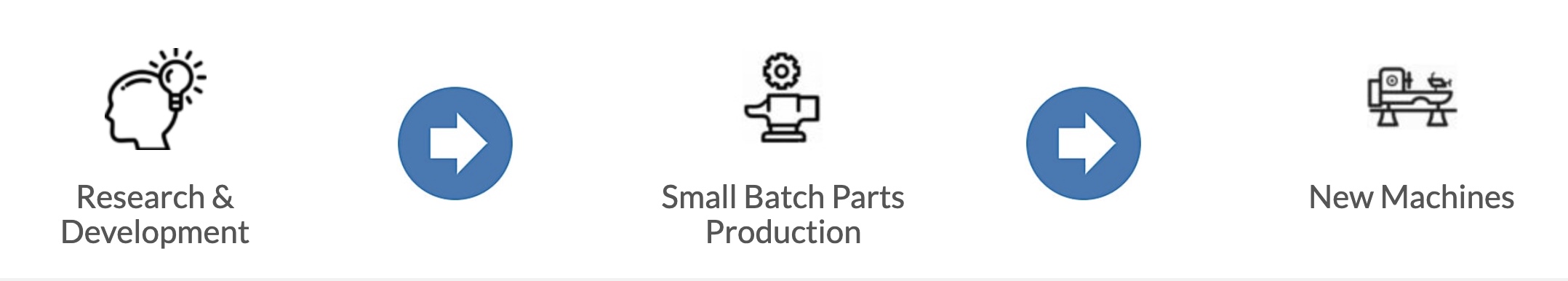

Let us verify your parts production process by starting in our R&D laboratory
to verify weldability, run parts and size your machine custom to your needs.
Research & Development
Small Batch Parts Production
New Machines

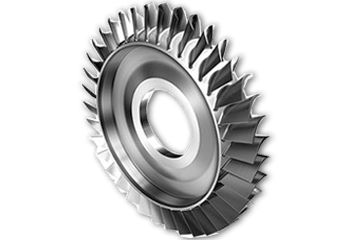

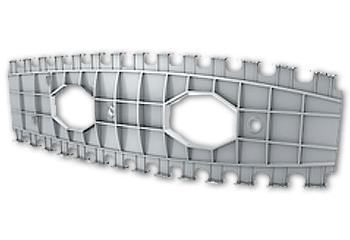

Linear Friction Welding has been predominately used in the aerospace industry, but because of the size of the machines, their price tag and many other reasons- LWF hasn’t reached mainstream manufacturing.
UNTIL NOW… Taylor-Winfield Technologies has developed a line of LFW machines that are breaking the barriers into mainstream manufacturing. Check out this video on how we did it!
Subscribe to my channel1
/
2
Ep.: 9 Automation and Linear Friction Welding
Linear Friction Welding Utilizing Electro-Mechanical Oscillation Technology
Ep: 8 Linear Friction Welding of Steel to Aluminum
Ep: 7 Linear Friction Welding of Copper to Brass using our 30ton LFW machine
Ep: 6 Not Every Weld Can Be Perfect At First...
Ep: 5 Material Stickout During the Linear Friction Welding Process
Ep: 4 Challenge Accepted
Ep: 3 Traditional Linear Friction Welding Machines vs. Taylor-Winfield's Linear Friction Welders
1
/
2
WHAT MATERIALS CAN BE WELDED WITH LINEAR FRICTION WELDING?
